It is suitable for welding of carbon steel and low alloy steel structure, such as ship, vehicle, mechanical structure, etc.

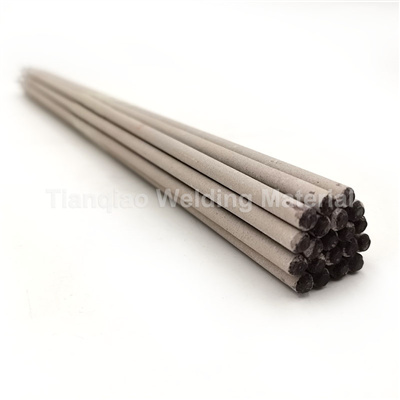

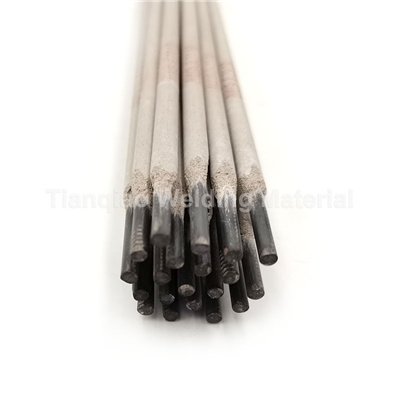

J501Fe18 is a rutile iron powder coated acid electrode. Can be welding by both AC & DC power source and flat and fillet welding.
Good welding performance, stable arc, small spatter, easy slag removal, beautiful weld forming, deposition efficiency up to about 180%.
Frequently Asked Questions
Q: What type of electrode is AWS E7024?
A: AWS E7024 (J501Fe18) is a rutile iron powder coated acid electrode designed for high-efficiency welding.
Q: What are the main applications for J501Fe18 electrodes?
A: These electrodes are ideal for welding carbon steel and low alloy steel structures, specifically in shipbuilding, vehicle manufacturing, and various mechanical structures.
Q: What is the deposition efficiency of this electrode?
A: The E7024 electrode offers high productivity with a deposition efficiency of approximately 180%.
Q: Which power sources and positions are compatible?
A: It can be used with both AC and DC power sources. It is specifically designed for flat and fillet welding positions (PA and PB).
Q: Do E7024 electrodes require pre-welding baking?
A: Generally, baking is not required. however, if the electrodes have been exposed to moisture, they should be baked at 150-170℃ for 1 hour before use.
Q: What are the key performance benefits of J501Fe18?
A: Users can expect a stable arc, minimal spatter, easy slag removal, and an aesthetically pleasing weld bead formation.
