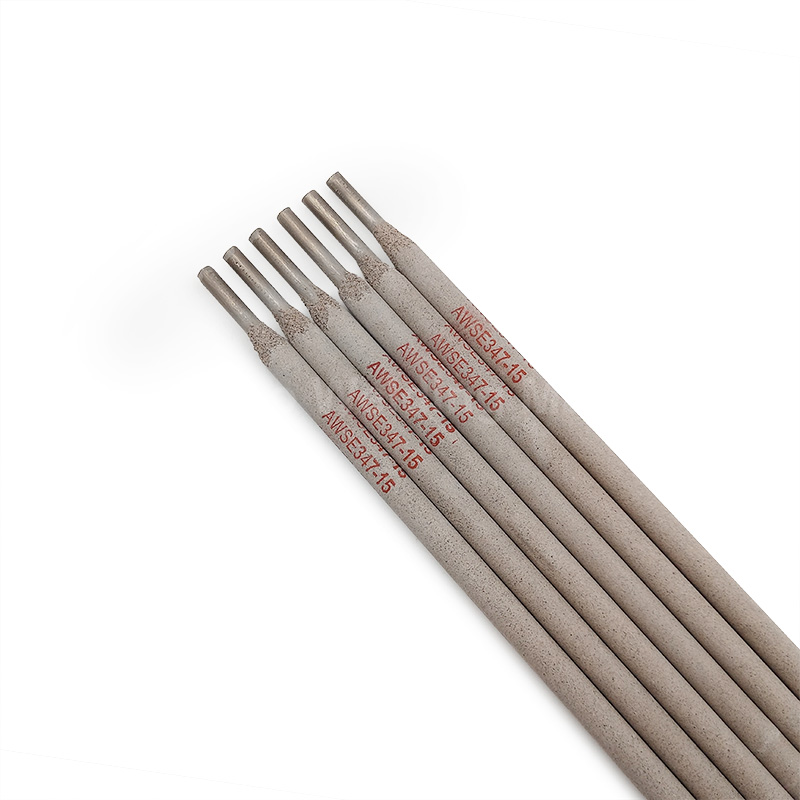

E347-15 is an alkaline coating type stainless steel electrode containing niobium stabilizer. It has excellent resistance to intergranular corrosion. Using DC reverse connection, all-position welding can be performed.
Used for welding important corrosion-resistant Cr18Ni11 stainless steel containing titanium or niobium stabilizer, such as 06Cr18Ni11Ti, 06Cr18Ni11Nb, etc.
PA, PB, PC, PD, PE, PF
| Items | C | Mn | Si | P | S | Ni | Cr | Mo | Cu | Nb+Ta |
| Standard | ≤0.08 | 0.5-2.5 | ≤1.00 | ≤0.04 | ≤0.03 | 9.0-11.0 | 18.0-21.0 | ≤0.75 | ≤0.7 | 8×C-1.00 |
| Typical Results | 0.063 | 1.51 | 0.46 | 0.023 | 0.007 | 9.78 | 20.13 | 0.11 | 0.19 | 0.66 |
| Items | Tensile strength Rm(Mpa) | Elongation (%) |
| Standard | ≥520 | ≥25 |
| Typical Results | 655 | 36 |
| Diameter(mm) | 2.5 | 3.2 | 4.0 |
| Current(A) | 50-80 | 80-110 | 110-160 |

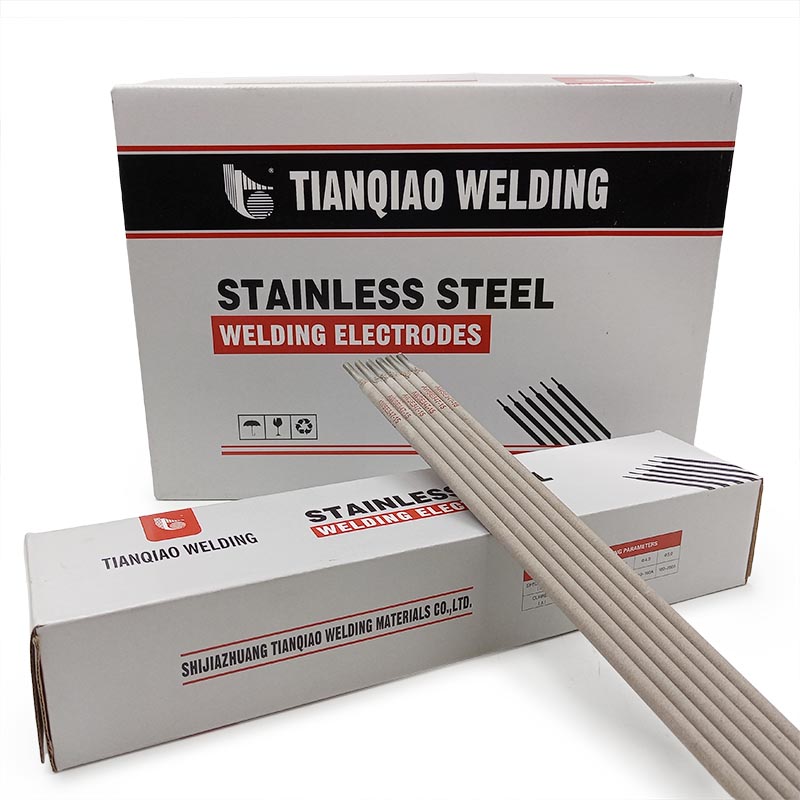

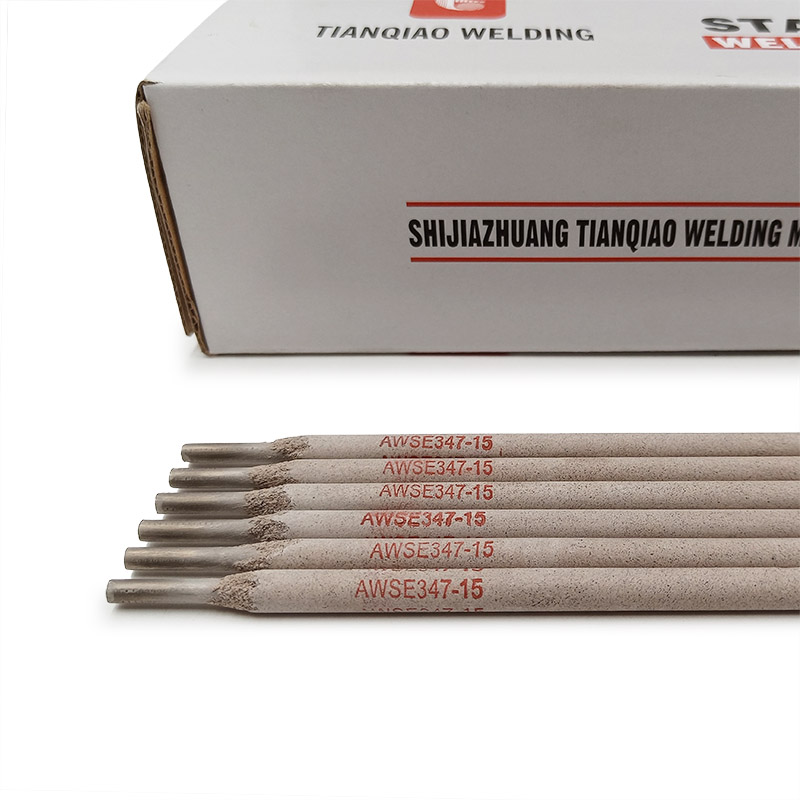

Standard Packaging:
5kg/box, 4boxes/carton, 20kgs/carton, 50cartons/pallet. 21MT -26MT per 1X20″ FCL.
OEM/ODM Support:
Full support for customized packaging according to design requirements. Available for detailed discussion.
Welding parts are inspected by professional quality departments. For welds requiring radiographic testing, at least 20% of the full length must be tested. If defects are found, supplementary testing is performed near the site. For critical components, geometric shape and appearance are inspected 100%.
Selection Guide: If the equipment supports DC reverse connection and requires high structural capacity, E347-15 is preferred for its alkaline coating, better toughness, and crack resistance. If AC/DC dual-use is required, E347-16 is recommended for better processability.
E347-15 (A137) Scenarios: Critical corrosion-resistant parts like chemical containers and high-temperature pipelines. Maintain layer temperature ≤150℃.
E347-16 (A132) Scenarios: On-site maintenance and complex welding positions, especially with AC welding machines. Easy to operate with stable forming.
