Applications

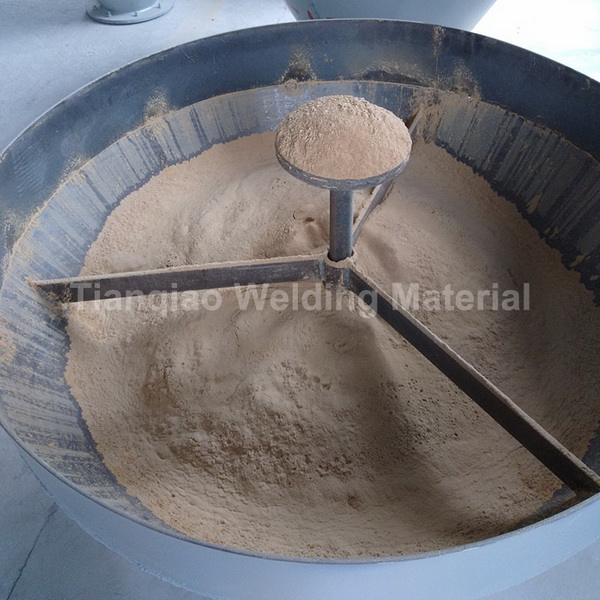

E6013 welding powder for making welding electrode, which is a kind of carbon steel electrode with iron powder titania type coating. AC/DC. All-position welding. It has excellent welding performance and is almost spatter-free. It has easy re-ignition, good slag detachability, smooth welding appearance. Common grade and rutile grade for you to choose.
Key Features
01
Quick strike, Easy restrike & Easy slag-removal
02
Stable arc performance & minimal arc interference
03
Smooth and shiny appearance & Excellent mechanical properties
04
High efficiency and high impact values at -30c
05
High deposition rates & Excellent crack resistance
06

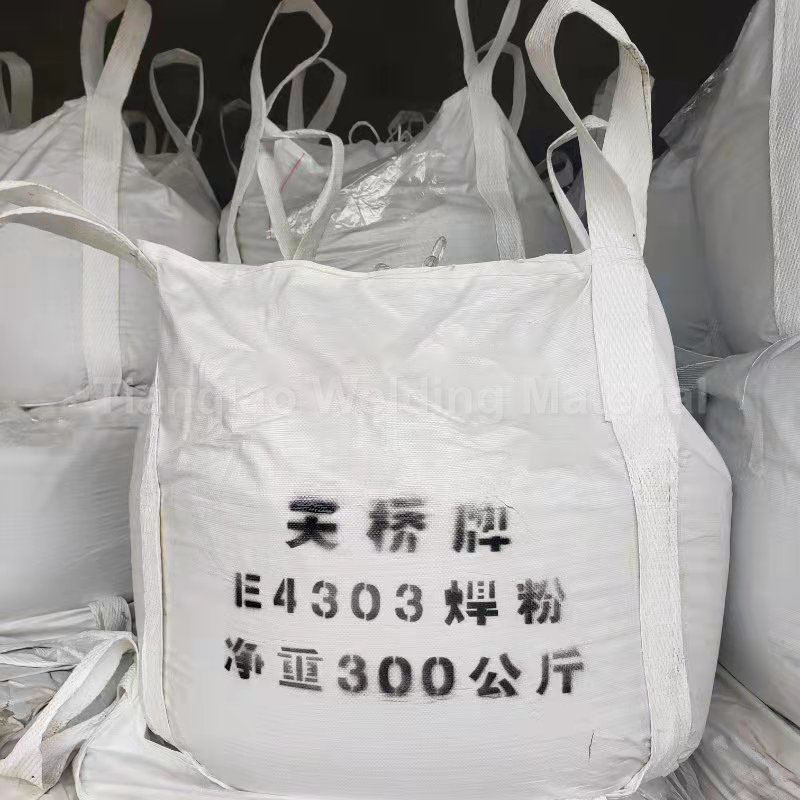

300kgs damproof bag packaging or customized
Attention & Precautions
- Electrode must be approved by 350-380℃ for 1 hour before welding, dry the electrode when use it.
- The rust, oil, water and other impurities of the weld must be removed before welding.
- You must use short arc welding, the swings should not be too large, narrow bead welding is appropriate.
- To prevent producing arc porosity, arc plate should be adopted or use return method for arc welding.
Chemical Composition
| Elements |
TiO2 |
AL2O3 |
SiO2 |
Mn |
CaO+MgO |
Organic |
Other |
| Actual result |
42 |
4.5 |
28 |
9 |
10.5 |
4 |
2 |
Welding electrode powder of E7018, E6011, E6010, E7024, etc are also available.
Process Technical Requirements
- Important welding parts should be clearly marked in accordance with relevant regulations when preparing welding procedure specifications.
- Assembling the mold (assembly fixture) of the welded parts, the amount of welding shrinkage must be considered to ensure design tolerances.
- Before assembling, remove the rust, oil, dust and moisture within no less than 25mm on both sides of the weld.
- The assembly gap should be controlled: butt welds 2~3mm, fillet welds 0~2mm. Filling gaps with unauthorized fillers is strictly forbidden.
- Welding materials and process parameters used in assembly tack welding shall be the same as formal weld requirements.
- For new materials and processes, process tests must be qualified before use.
- The welding slag and defects at the root of the weld must be removed before welding reverse or grooved welds.
- It is forbidden to start arc ignition and test current adjustment in non-welding areas.
- For steel plates with a thickness of 0.3~4mm, gas metal arc welding or argon tungsten arc welding are recommended.
- During multi-layer welding, joints between layers should be staggered and temperature controlled between 250~300℃.
Frequently Asked Questions
Q1: What are the main applications of E6013 welding powder?
E6013 powder is primarily used for making carbon steel welding electrodes. It features a titania type coating, supports all-position welding, and is compatible with both AC and DC power sources.
Q2: Do I need to pre-treat the electrodes before welding?
Yes, electrodes should be baked at 350-380℃ for approximately 1 hour to ensure they are dry before use, which helps in achieving optimal welding performance.
Q3: How should I manage the assembly gap for butt welds?
For butt welds, the assembly gap should be strictly controlled between 2~3mm. For fillet welds, the gap should be kept between 0~2mm to avoid residual stress.
Q4: What is the recommended inter-layer temperature for multi-layer welding?
During multi-layer welding, especially with low-alloy structural steel, the temperature between layers should be maintained between 250~300℃.
Q5: What are the aesthetic benefits of using E6013 electrodes?
E6013 electrodes provide a very stable arc, minimal spatter, and easy slag removal, resulting in a smooth, shiny, and professional welding appearance.
